3P Gravure Laminated Can

  • Prize
  • Technology

Outline

Product name 3P Gravure Laminated Can

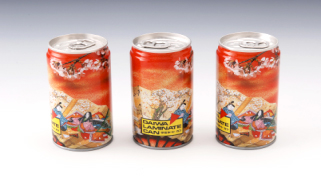

Product photo 3P Gravure Laminated Can
Type Metal
Material Steel
Can type 3-Piece
Beverage type Coffee, tea, fruit juices, soups and others *Please inquire for details.
Features
  • Gravure printed film is laminated to the outside surface.
  • Gravure printing dramatically improves the appearance of the product, enabling a higher-quality design with greater shelf appeal.
  • The inside surface is laminated with PET film instead of conventional coatings.
  • Printing with inks that create a metallic or pearlescent finish is possible, enabling truly eye-catching designs.
Color Can be gravure printed
Details

3P Gravure Laminated Can

  • 3-Piece Can3 Piece Can
  • O2barrier propertyO2 barrier property
  • UV proofUV proof

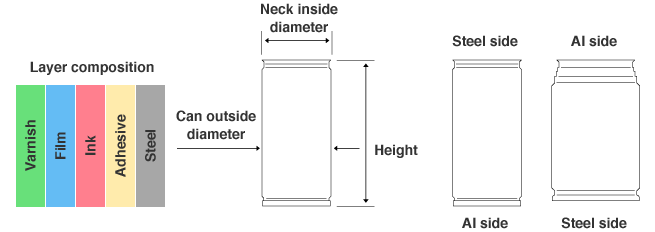

Type Symbol Capacity(ml) Neck outside diameter (mm) Can inside diameter (mm) Neck inside diameter (mm)
AI side Steel side
RコN1 160 52.8 88.8 50.0 50.0
RLN1 190 104.8
RLK1 104.7 46.7
RLN2 190 133.3 50.0
RLK2 133.1 46.7
RW28 280 65.9 101.0 57.2 62.6
RLG3 350 121.7
